The PRS4/PRS5 dust foot assembly is for tools built after July 2017. PRS tools built after 2007, without an air drill, can also use this dust foot.

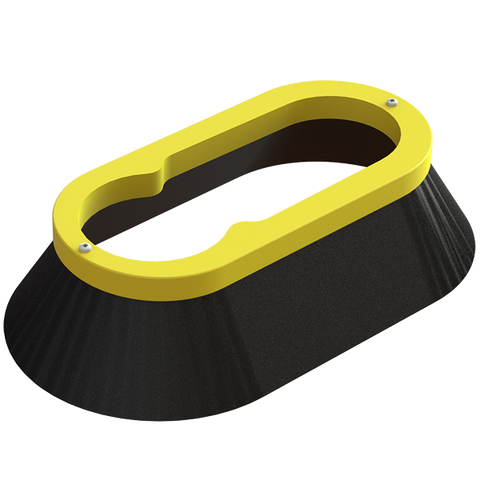

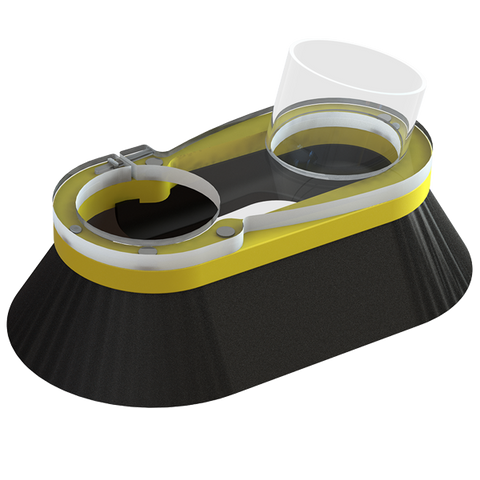

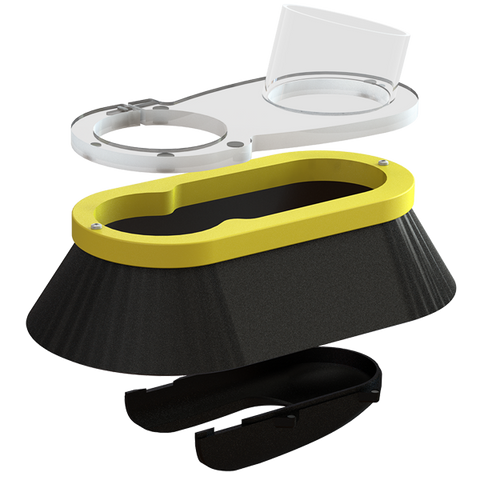

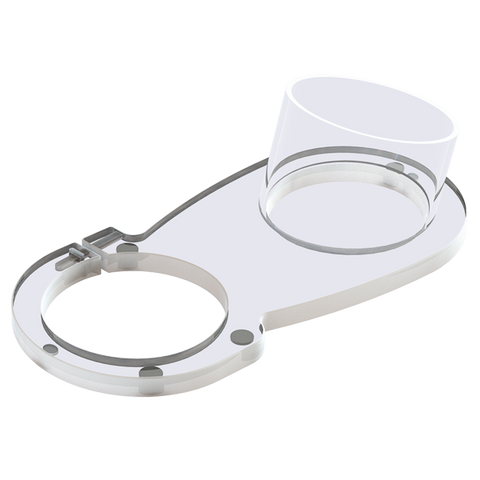

The PRS4/PRS5 dust foot is made up of two main parts, an upper and a lower. The upper is clear polycarbonate and is secured to the spindle or router. The lower is made of yellow HDPE with an attached brush and mounts to the upper with magnets, making it easy to remove for bit changes. Inside of the lower is a removable plastic insert that helps redirect airflow around the cutting head and increase vacuum potency.

Be sure to select your cutting head type to correctly specify the dust foot needed for your tool. Choose between: complete assembly, acrylic shroud only, or shroud only.

Installation Documentation.

Images shown are representative—final dust foot assembly may vary by model and options.

Need confirmation of what tool type or which dust foot you need? Contact support@shopbottools.com
